Stacking Rapid Door

Stacking Rapid Door
Үнийн санал — хэмжээ, тоо ширхэгээс хамаарч тооцно.

Загварын дэлгэрэнгүй үзүүлэлт, суурилуулалтын нөхцөл, тохирох хэмжээг мэргэжилтнээс тодруулна уу.

77105888Захиалга илгээх

Дэлгэрэнгүй мэдээлэл

Technical data:

Max dimension: wide*high≤13000mm*8000mm
Max opening Speed: 1.0m/s
Max closing speed: 0.7m/s
Wind resistance: Beaufort scale 12 (35m/s)
Power supply: 1-phase 220±10%V,50/60HZ,or3-phase 380V±10%V,50/60HZ
Protection level of electric: IP55
Available colors of fabric: Yellow, Blue, Red, Grey, White

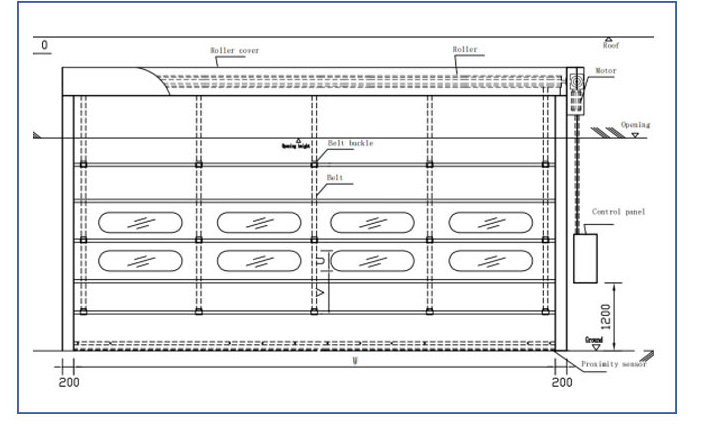

Structure diagram:

stacking rapid door diagram



1.PVC fabric：PVC environmentally friendly material, safe, durable, with multiple colors to choose,Standard thickness:1.0mm(950g/sqm).Other thickness available:1.2mm-1.5mm;Flameresistant material.

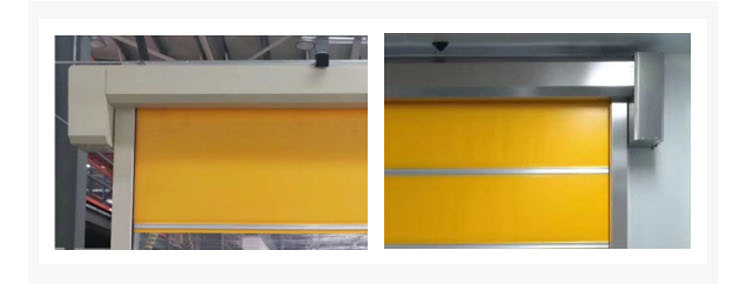

2.Frame and Rails：Including two guide rails,one top cover box and motor cover.Galvanized steel or stainless steel.Thiickness:1.5mm guide rail;1.0mm cover box.

Normal-4

3. Motor and controller：Italy servo technology motor and controller with English interface.Absolute encoder+inbuilt incremental encoder,double encoder ensure low failure rate.

Normal-5



4. Safety devices：

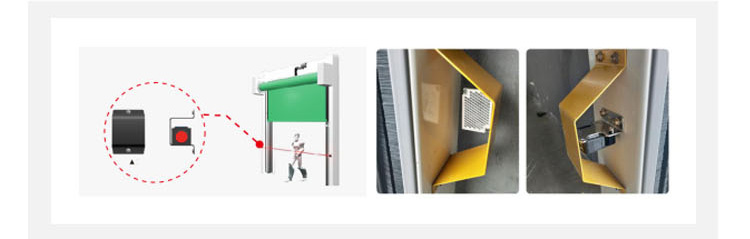

A.Photocell sensor:When there is a human or vehicle under the door,the door will stop closing and get up automatically.This will avoid accident collisions.

Normal-7

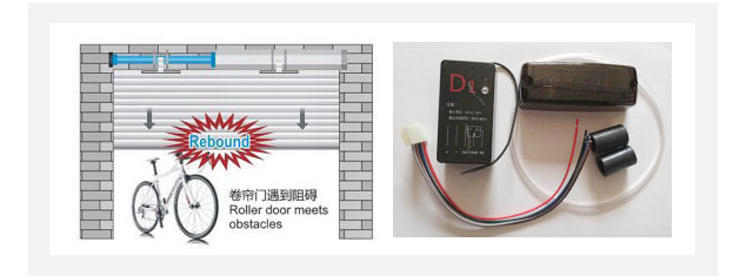

B.Safety bottom edge：When the bottom bar of the door touches something,it will stop closing immediately and get up automatically.

Normal-8

C.Alarm light and enmergency buttons.

Normal-9

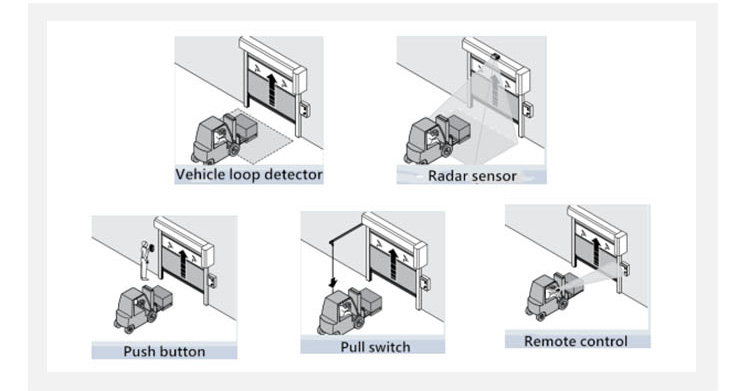

5. Operation methods：

Normal-10



6. Commonly used colors:(Other color can be customized.)

Normal-6
